REAN a brand by Neutrik AGDescription
NEUTRIK GOLD PHONO RCA PLUGS NYS373 Red Black
The connectors, branded REAN, are high quality, heavy duty, all metal phono plugs designed to be used with the best audio components as well as in demanding professional applications.

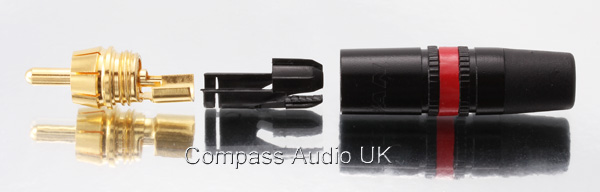

Neutrik phono RCA plugs are constructed from a black zinc diecast shell and gold plated brass metal connector for strength and optimum signal transfer. A flexible rear rubber boot accepts cable up to 6.1mm in diameter and seals the assembly. The cable is also secured internally by a plastic chuck providing strain relief and a consistently high level of performance and connectivity.
Neutrik Rean NYS373 phono plugs are ideal for use on the road, in the studio and in all high quality music and audio systems.
Installation of the Neutrik REAN phono plugs requires soldering to achieve optimum sonic performance.
Key Features:

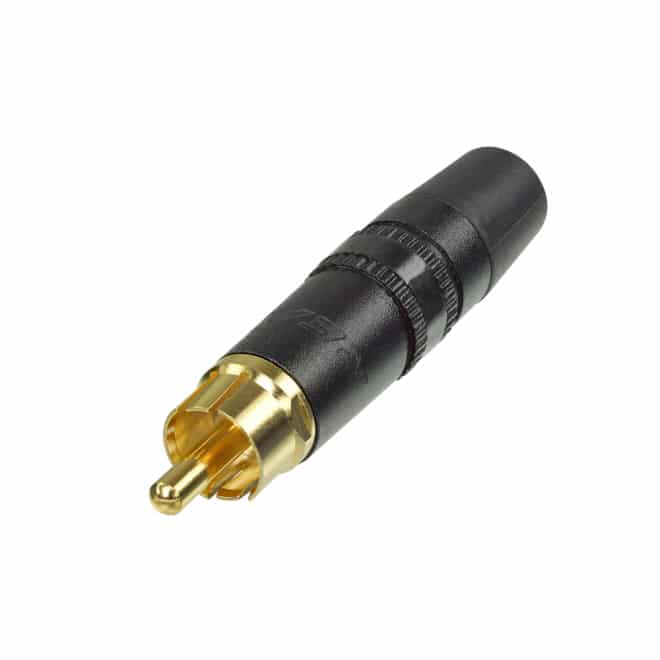

- Neutrik REAN NYS373 phono plugs
- Tough black diecast metal shell
- Gold plated brass metal contacts
- Large solder bucket and strain relief
- Flexible rubber cable boot

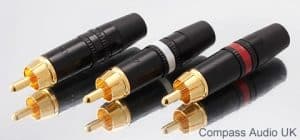

- Colour coded bands: NYS373-0 black, NYS373-2 red
NEUTRIK GOLD PHONO RCA PLUGS Red White NYS373 also available.
Technical Information:
Electrical:
- Contact resistance: depends on mated connector
- Dielectric strength: 0,5 kVdc
Mechanical:
- Cable O.D.: 3.5 – 6.1mm
- Lifetime: >1000 mating cycles
- Wire size: 24 AWG
Material:
- Contact plating: Au
- Contacts: Brass (CuZn39Pb3)
- Strain relief: Internal plastic chuck
- Shell: Zinc diecast (ZnAl4Cu1)
- Insulation: Thermoplastic
Environmental:
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +70 °C
If you require any more information or drawings of the NYS373 phono plug. please check out the REAN website here. We can also supply NYS373 plugs with the following colour band variations on request:
- yellow (NYS373-4)
- green (NYS373-5)
- blue (NYS373-6)
- white (NYS373-9)
